$1,250

The TX2 is a high-precision quadband GNSS receiver with RTK and Galileo HAS support for centimeter-level positioning. Designed for surveying, it features an IP67 waterproof enclosure and integrated antenna for reliable field deployment.

In stock, ready to ship

Pickup available at 6333 Dry Creek Parkway

Usually ready in 24 hours

Pairs well with
<a href="https://docs.sparkpnt.com/TX2/" target="_blank" title="SparkPNT TX2 User Manual and Documentation">User Manual and Documentation</a>

User Manual and Documentation

<a href="https://www.sparkpnt.com/pages/sparkpnt-policies#warranty" target="_blank" title="https://www.sparkpnt.com/pages/sparkpnt-policies#warranty">1 Year Warranty</a>

1 Year Warranty

Tech Support and Repair Services Available

Tech Support and Repair Services Available

MFi Certified and Apple Compatible

MFi Certified and Apple Compatible

About the TX2

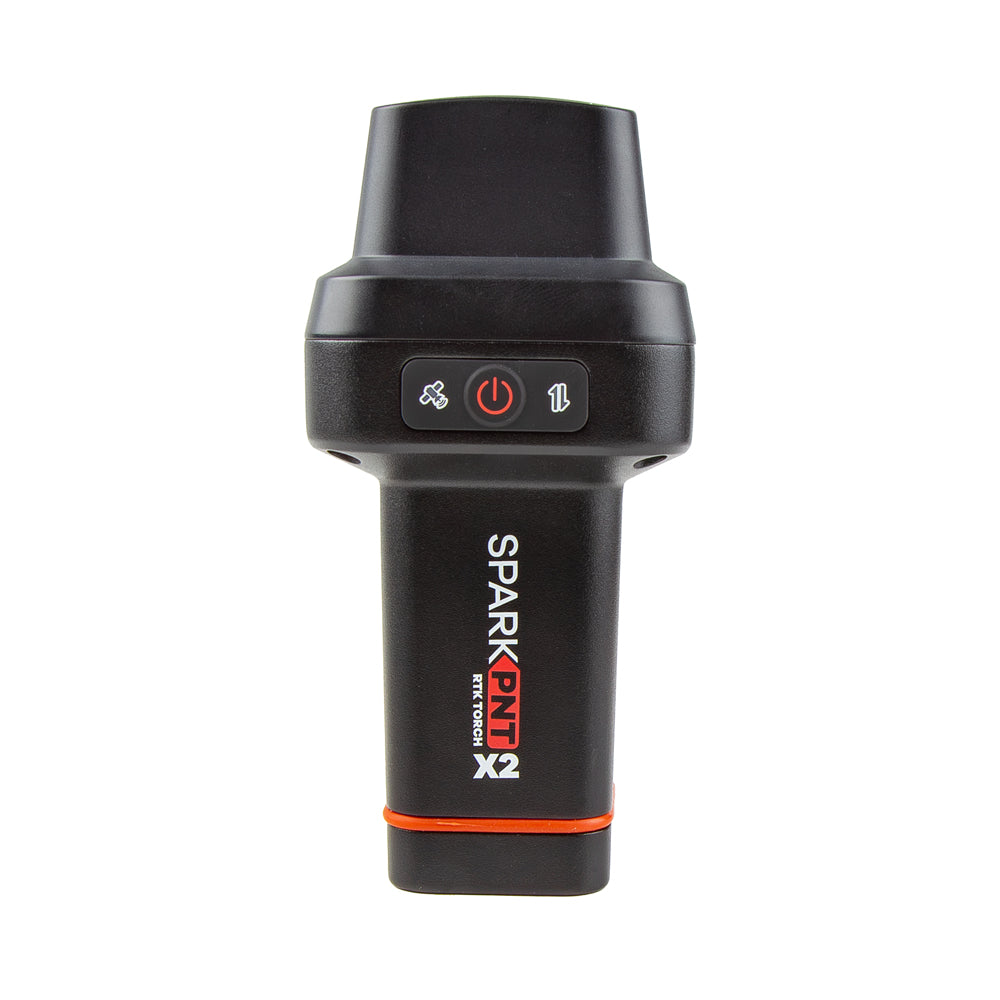

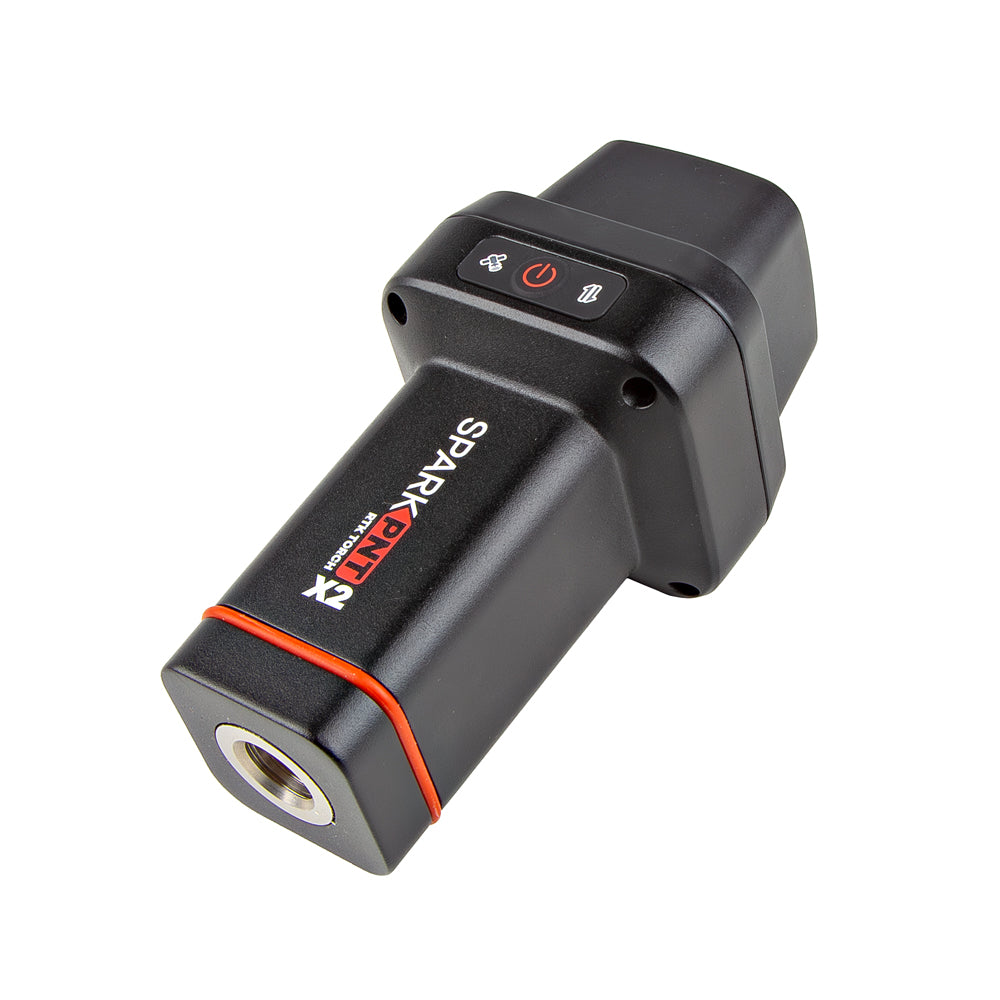

The TX2 is a simple-to-use high-precision GNSS device built around Quectel's quadband LG290P module and capable of 8mm accuracy when receiving RTK corrections. This receiver is protected inside a robust, waterproof housing with a compact internal helical GNSS antenna and an enclosed battery that lasts over 50 hours.

Packed with modern features:

  • Capable of L1/L2/L5/E6 reception with Galileo HAS support.
  • MFi certified, ensuring compatibility with iOS devices.
  • Can connect to any modern cell phone or tablet over Bluetooth.
  • Uses WiFi to connect to corrections networks (NTRIP Client built-in) and to distribute location data over TCP.
  • Affordable and competitive price point when compared to similar devices.

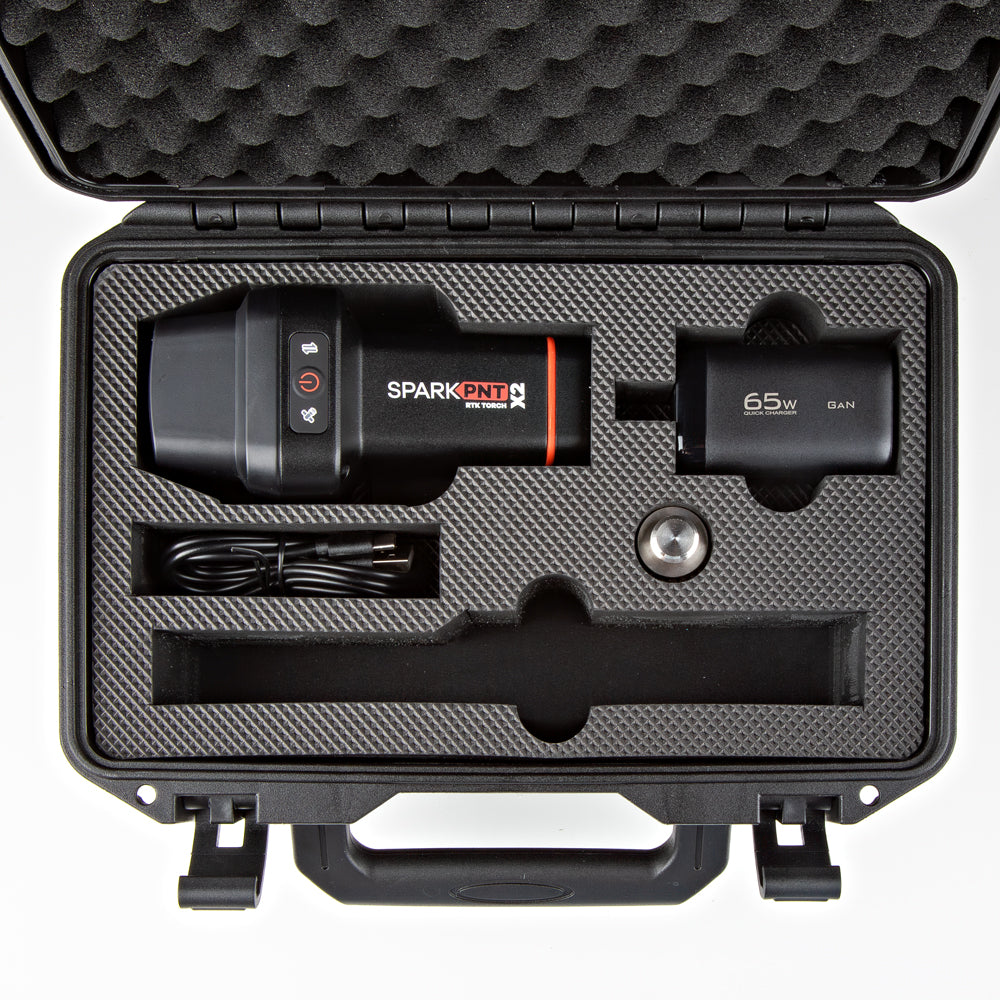

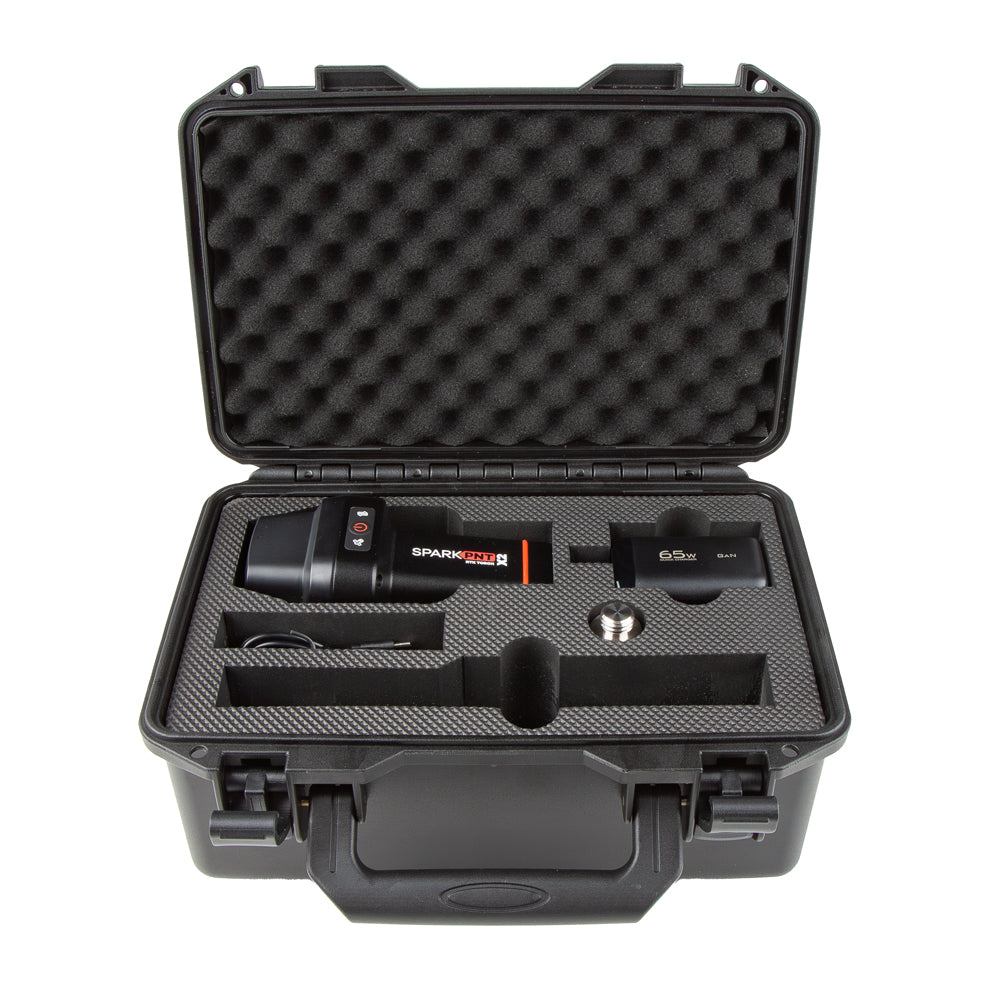

Included with the TX2

  • TX2

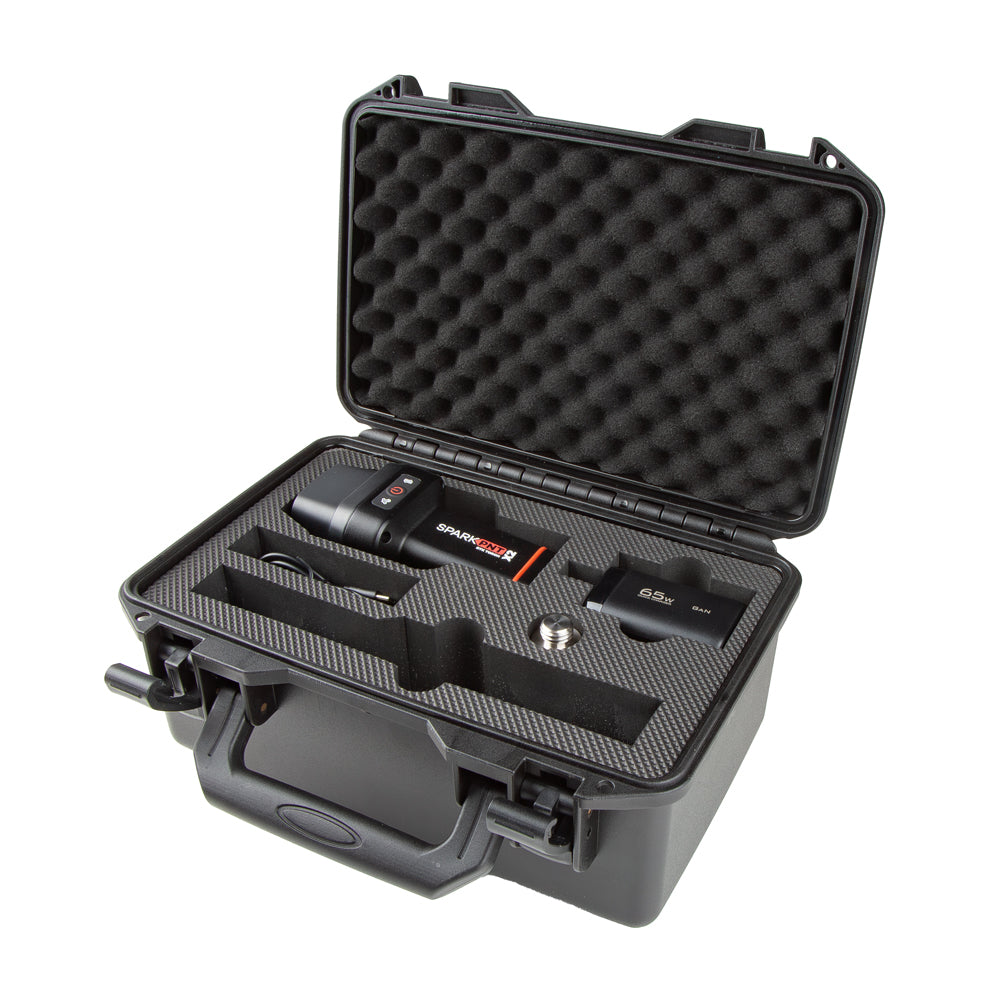

  • Hard-Shell Carrying Case

  • Power Wall Adapter and Charging Cable

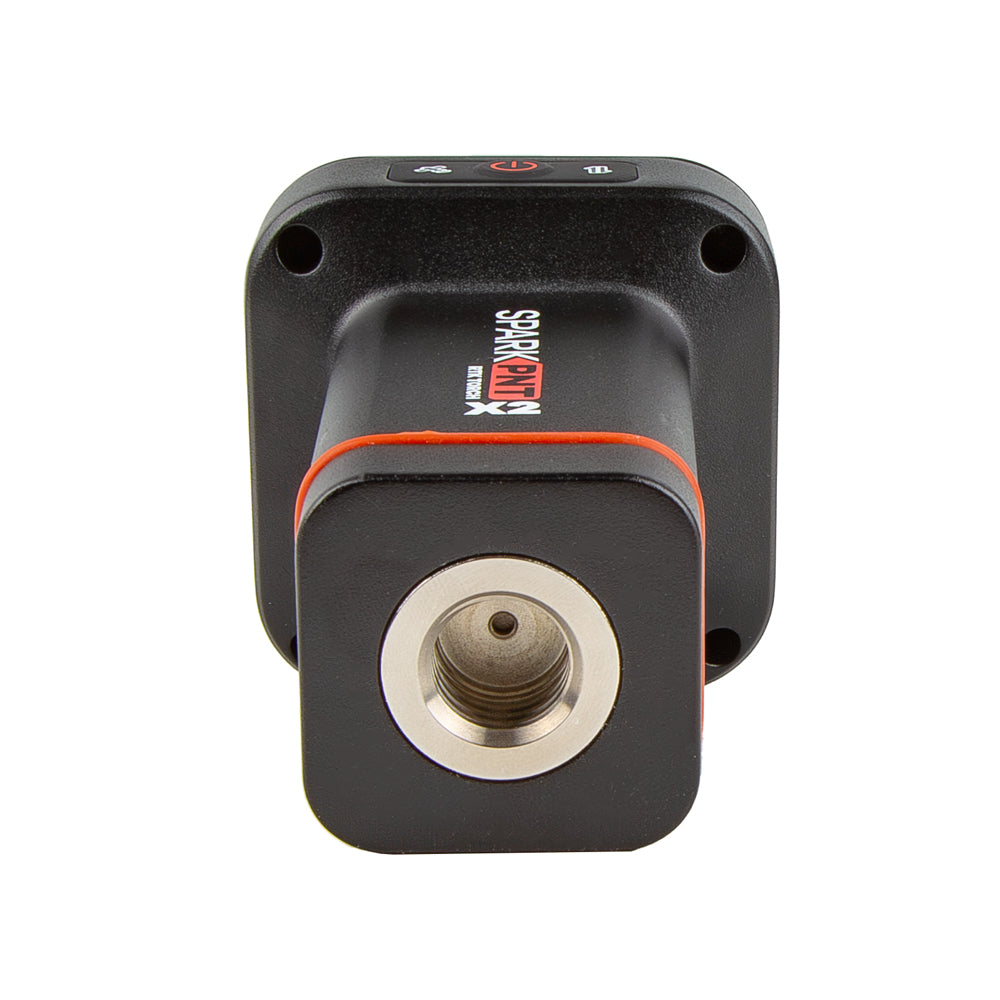

  • Antenna Thread Adapter

Accurate positioning, anywhere.

Galileo HAS support allows the TX2 to get better than 20cm accuracy anywhere in the world without needing a corrections source or an internet connection.

Technical Specifications

GNSS Details

Reception:
  • L1
  • L2
  • L5
  • E6
Constellations:
  • GPS
  • GLONASS
  • Galileo
  • BeiDou
  • QZSS
GNSS Engine:

Quectel LG290P

Positional Accuracy

Horizontal:

15mm + 1ppm (with RTK fix)

Vertical:

8mm + 1ppm (with RTK fix)

Galileo HAS Support:
  • Yes

Message Formats & Security

Corrections Sources:
  • NTRIP
  • HAS
  • SBAS
Message Formats:
  • NMEA
  • RTCM
Security:
  • NIC

Device Details

Weight:

428g (0.94 lbs)

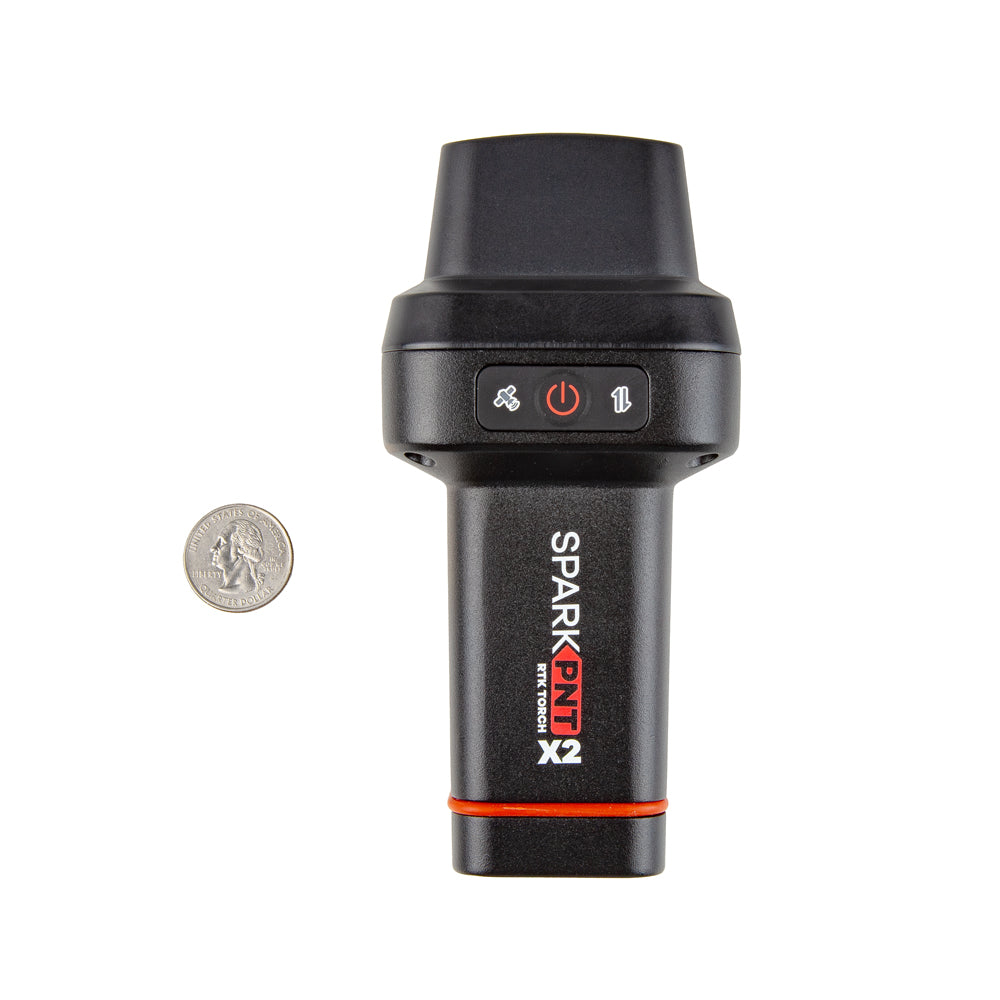

Dimensions:

71 x 71 x 147mm (2.8 x 2.8 x 5.8in)

Battery

Details:

LiPo 7.2V 6.8Ah 48.96Wh

Runtime:

~50 hrs (full charge)

Fast Charging:
  • Yes

Communications

Wireless:
  • Bluetooth/BLE
  • WiFi 802.11 b/g/n
  • ESP-NOW Radio
  • SPP
Additional Ports:

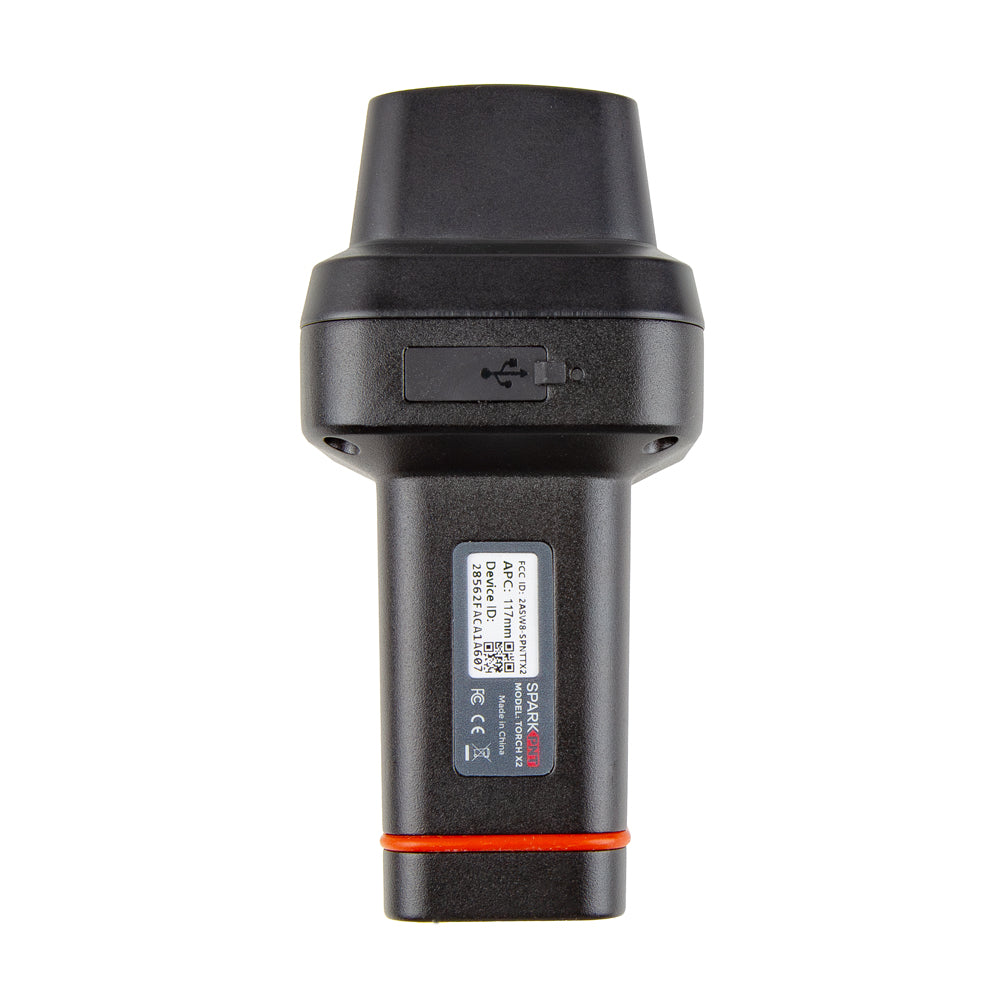

  • USB-C

Environmental Ratings

Ingress Protection:
  • IP67
Operating Temperature:

-40°C to +85°C

Antenna Phase Center

  • L1: 131.7mm
  • L2/L5: 126.2mm
  • Average: 129.0mm

Calibrated by NGS

Certifications:

FCC (2ASW8-SPNTTX2) and CE certified

Made for iPhone:

Apple and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries and regions.

Compatible with your favorite GIS apps.

Bluetooth connectivity gives you wireless connection to your preferred data collecting mobile applications.

Supported platforms include:

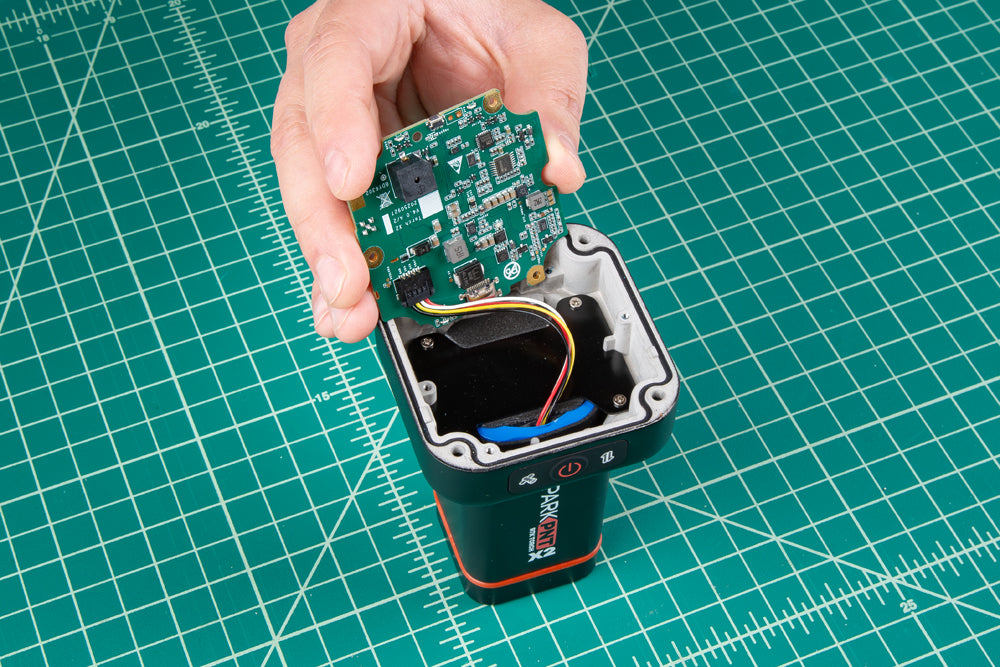

We support your Right to Repair.

SparkPNT is built on the promise that a user owns the device they paid for. We do not sell devices that use security screws or glue to try to prevent user repair. We provide repair documentation and replacement parts to make sure you can continue to use your device as long as you own it.

TX2 Repair Manual
Load video:

Documentation

SparkPNT devices are fully transparent by design — with open-source firmware, published schematics, and complete documentation. What’s inside isn’t hidden; it’s part of the product.

TX2 Product Manual
Additional Documentation

Github Firmware Repository

TX2 Schematic

LG290P Datasheet

FAQs

Please read our FAQs page for more general help.

Does the TX2 support tilt compensation?

No, the TX2 does not contain an internal IMU for tilt compensation. We wanted to make the TX2 as simple, rugged and economical as possible. If tilt compensation is important for your GIS needs, please consider one of the models of the Facet FP that supports tilt compensation.

Why won’t my SparkPNT TX2 achieve an RTK fix when connected to NTRIP?

Verify that your correction source is using an MSM4, MSM5, MSM6, or MSM7 RTCM stream. The LG290P inside the TX2 requires MSM-format corrections and may not work properly with older RTCM message types.

When in doubt, performing a factory reset may clear problematic settings.
