FP Machine Interface Cable

$60

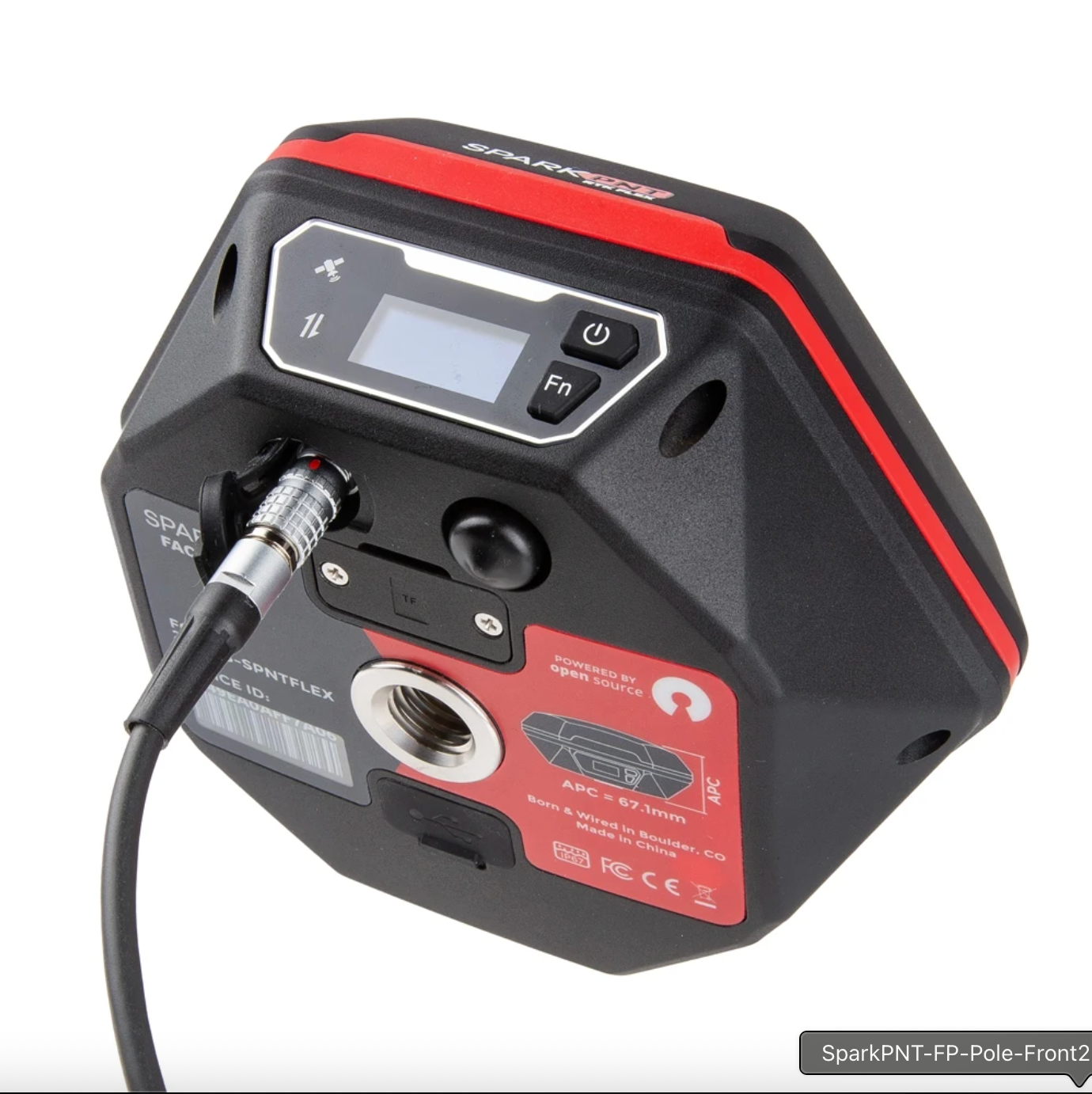

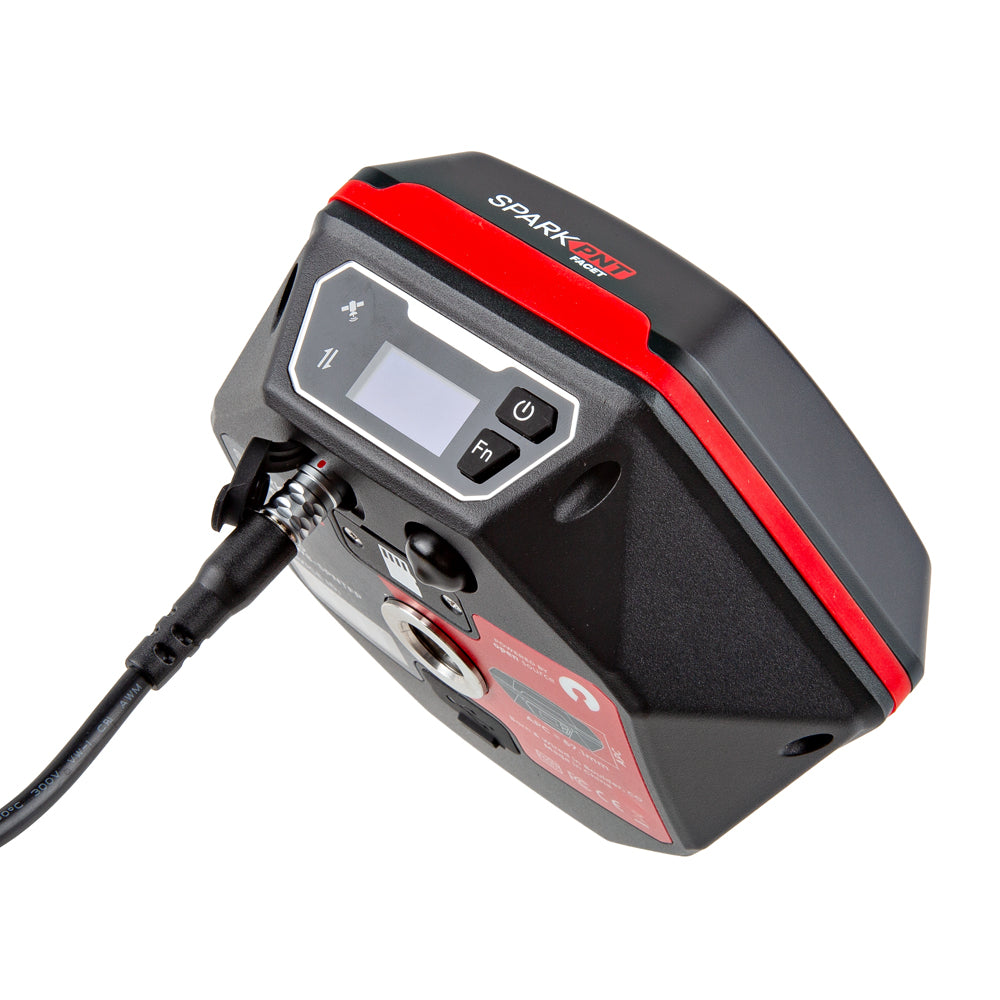

Connect your SparkPNT FP devices to custom setups with this 1.5m interface cable featuring a secure 5-pin Lemo-style connector and bare wire termination. The cable allows an FP to be externally powered by 6V to 20V DC and interfaced with RS232 serial devices. Position information, providing external corrections, and remote configuration are possible through this external interface.

Hurry, only 10 items left in stock!

Pickup available at 6333 Dry Creek Parkway

Usually ready in 24 hours

Pairs well with
<a href="https://www.sparkpnt.com/pages/sparkpnt-policies#warranty" title="https://www.sparkpnt.com/pages/sparkpnt-policies#warranty">1 Year Warranty</a>

1 Year Warranty

Product details

Overview

The SparkPNT FP Machine Interface cable is the essential link for your SparkPNT FP hardware. Designed to connect directly with your FP, this cable provides a secure connection for power and data transmission, even for custom hardware setups. This cable gives you plenty of slack to comfortably route your connections exactly where they need to go.

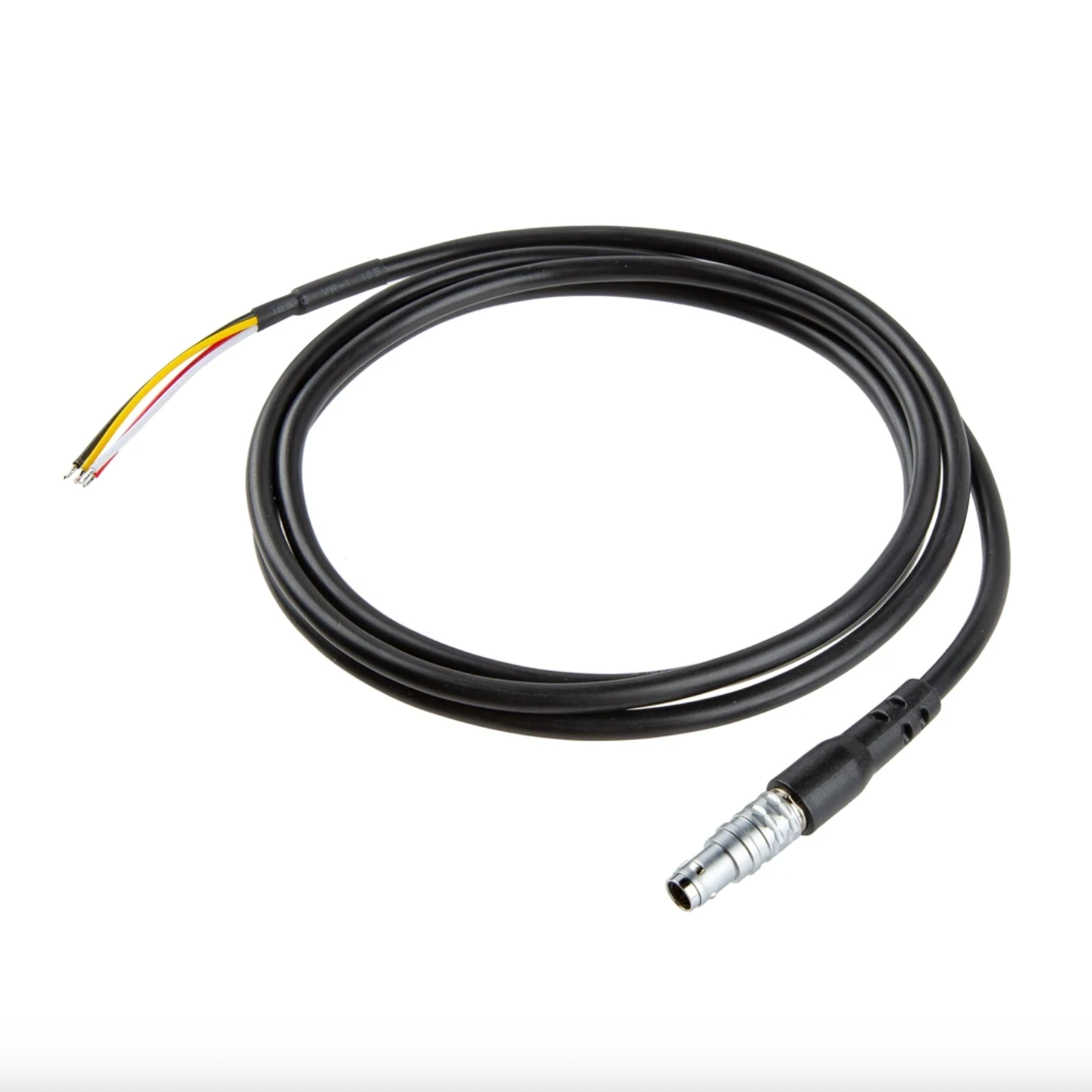

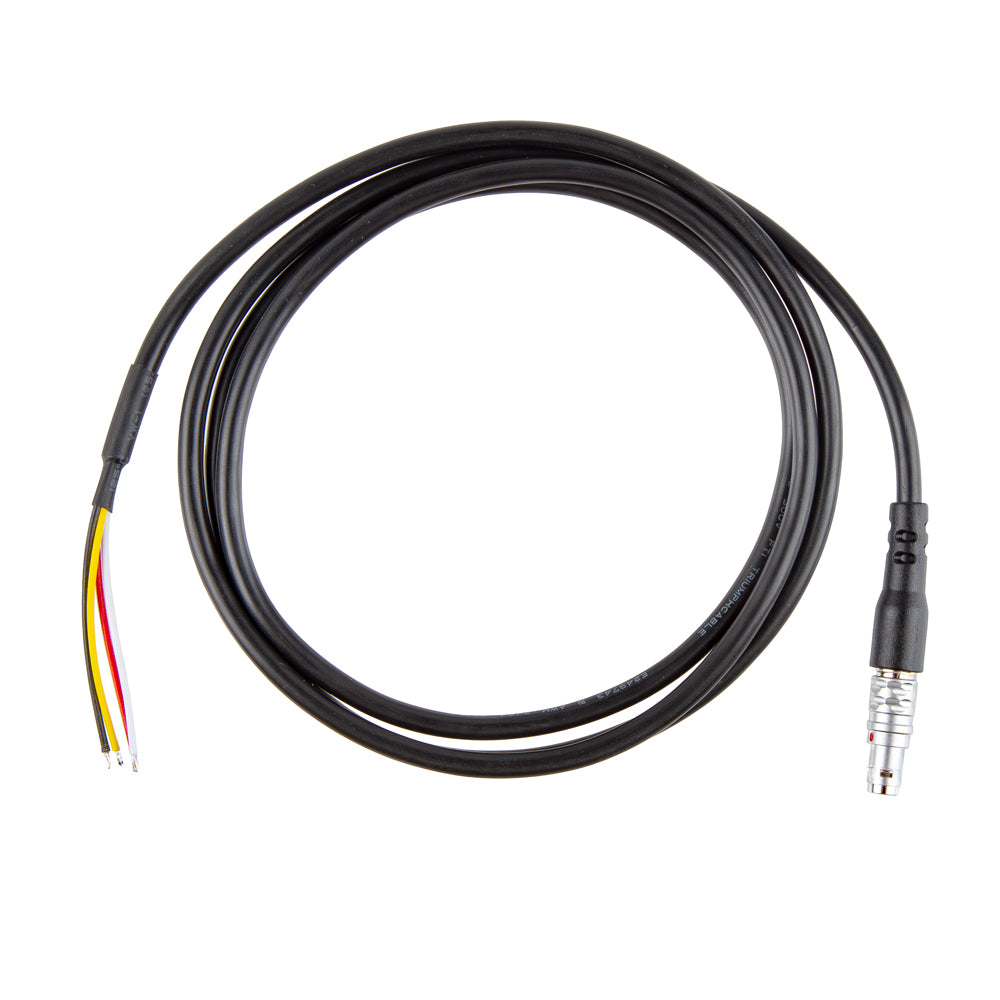

With a 20 AWG wire to handle whatever your hardware might need, this cable features a secure, 5-pin Lemo-style connector on one end that locks firmly into your SparkPNT FP device. The opposite end terminates in four stripped, bare wires ready to be soldered, crimped, or screwed into your specific application. The bare wires have been color-coded to make wiring as easy as possible.

Dimensions
  • 20 AWG
  • Length: 1.5m (4.9ft)
  • 5-pin Lemo Style Connector

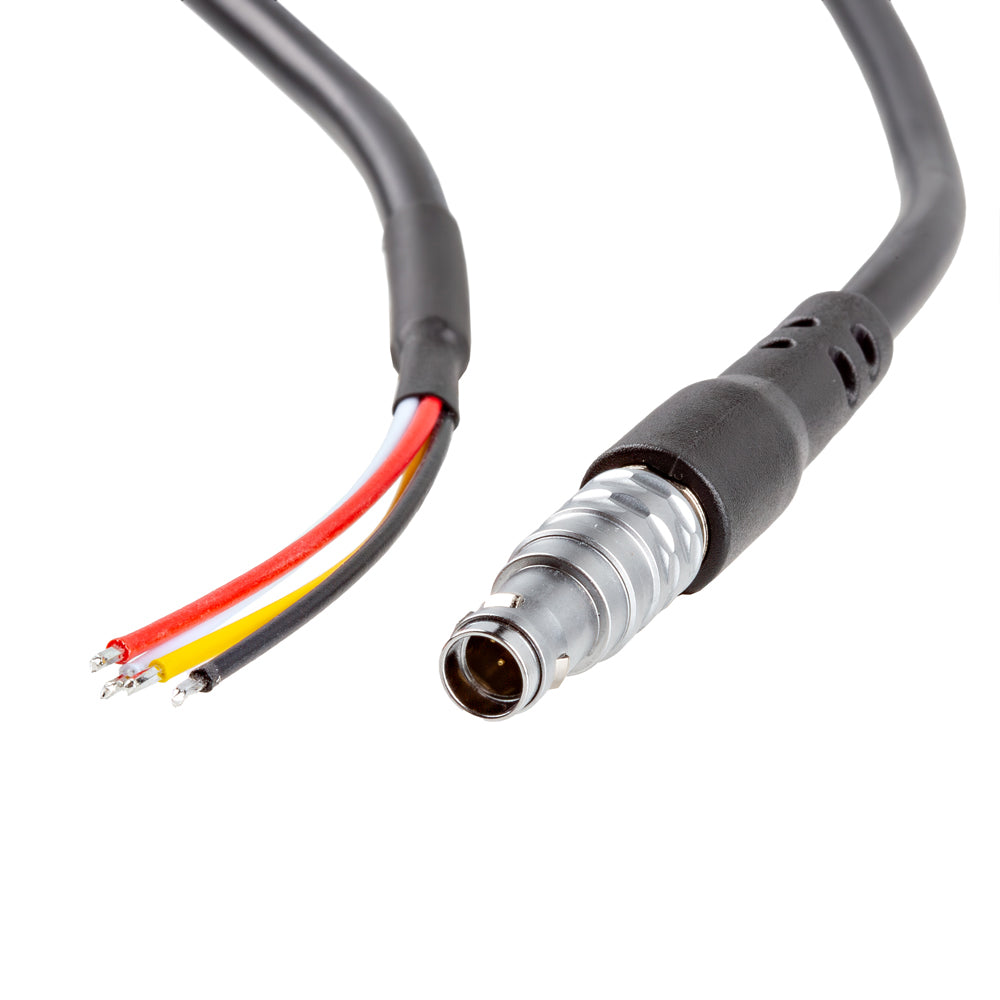

  • Bare Wires:
  1. Red - VIN (6V-20V using the Lemo connector)
  2. Yellow - RX
  3. White - TX
  4. Black - GND

Get to work.

The SparkPNT FP Machine Interface Cable completely eliminates the guesswork from your SparkPNT FP integration, letting you focus on getting your surveyor up and running.
